100L-400L Electrical Door Cylindrical Steam Pressure Horizontal Autoclave

This steam pressure autoclave is stainless steel sterilization equipment with fully automatic touch screen control. It is widely used in hospitals, laboratories, universities and other places to efficiently sterilize high temperature resistant items such as surgical instruments, fabrics, glassware and culture media.

Main Parameter:

Product Details

Product Features:

1. Automatically controlled sterilizing process, easy to operate vacuum autoclave.
2. Equipped with a 7-inch color touch screen for easy operation, real-time display of time, pressure, temperature, and other parameters.
3. Supports more than 6 sterilization programs; users can select the appropriate one based on the type of medical or laboratory items being sterilized.
4. Built-in steam generator and one set of movable sterilization plate included for flexible use.
5. The inner cavity adopts a cylindrical double-layer structure (sterilization chamber + jacket) with deep drying function, ideal for hospital sterilization.
6. Features three or more pulsating vacuum cycles, suitable for all types of packed, unpacked, hollow, porous, and pipeline instruments, including complex hollow instruments.
7. With BD test function for reliable steam penetration testing, ensuring sterilization validation.
8. Built-in printer to record the entire pulse vacuum sterilization process for traceability.
9. Safety interlock device:
   • Steam is blocked and alarmed if the door is not fully closed, enhancing operator safety.
   • Door remains locked when chamber pressure exceeds 0.027MPa, preventing accidental opening.
   • Over-temperature and over-pressure protection ensures reliable performance in medical and laboratory settings.
   • Over-pressure relief via safety valve when pressure exceeds safe levels, safeguarding high-pressure sterilization cycles.
10. Low water level protection:
    • Sterilization won't start unless water reaches high level, ensuring correct sterilization conditions.
    • System auto-shuts off if water is too low to prevent equipment damage.
    • Overcurrent protection:
11. Automatically cuts off power when overloaded to prevent electrical hazards.
12. Sealing door system:
    • Manual open/close with radial rod rotary table type for ergonomic operation.
    • Two-stage self-locking and interlocking safety system for enhanced operational security.
    • Single door standard (double door optional), with pressure safety interlock for complete safety assurance.
13. Chamber is made of high-quality stainless steel, corrosion-resistant for long-term medical-grade sterilization.
14. Optional configurations: single door or double door for hospital CSSD and pharmaceutical production flexibility.

Application:
Laboratory type autoclave: glassware, culture medium, surgical instrument autoclave, biological waste (must be handled in compliance with regulations).
Hospital use sterilizer: surgical instrument kits, dressing kits, fabrics.
Pharmaceutical Autoclave/Bioengineering Autoclave/Food Industry Autoclave: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

Why Choose Us?

1. Horizontal Autoclave Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
3. Custom Autoclave Sterilizer Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
4. Certified Medical Steam Autoclave Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

1. Q: What are your payment terms?
   A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
2. Q: What is the delivery time?
   A: About 25 working days for one unit.
3. Q: What certifications does the sterilizer have?
   A: CE, ISO 13485, ISO 9001.
4. Q: What warranty and after-sales support do you offer? Is global support available?
   A: 12-month warranty from installation. We offer:
   ① Remote technical support via phone, email, and video.
   ② Operation & maintenance training (manuals, online/on-site).
   ③ Ample spare parts stock.
   24/7 technical response guaranteed.
5. Q: How do you ship the products?
   A: Ship by Sea or Air
   ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
   ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
6. Q: What trade terms do you support?
   A: EXW, FOB, CFR, CIF, and DDP.
7. Q: Are you a factory or a trading company?
   A: We are the horizontal autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

100L Fully Automatic Horizontal Autoclave

Electrical Door Fully Automatic Horizontal Autoclave

Air Compressor Dental Sterilization Machine

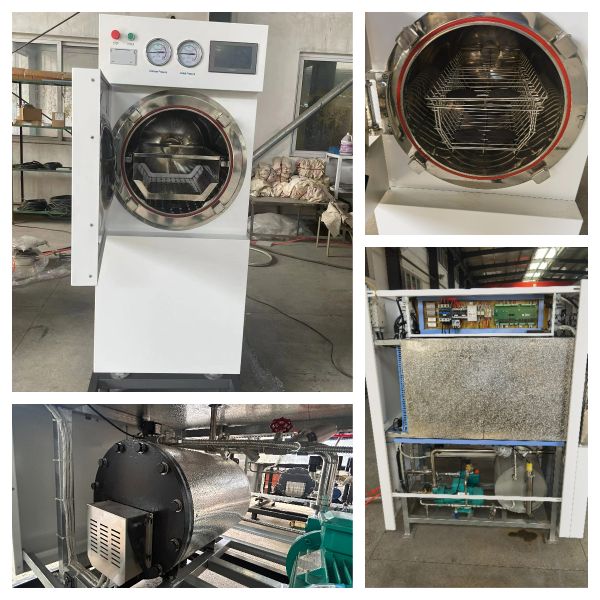

Electrical Door Fully Automatic Horizontal Autoclave with Air Compressor Images
